Product Detail

TBD -X02

Collect
  • Description

Overview
1. The product is made of 304 stainless steel material

2. Can bear a maximum door weight of 200KG

3. The maximum opening angle is 180°

4. Can achieve up and down adjustment of ±3mm

5. Left and right adjustment of ±3mm

6. Front and rear adjustmentt of ±1.5mm

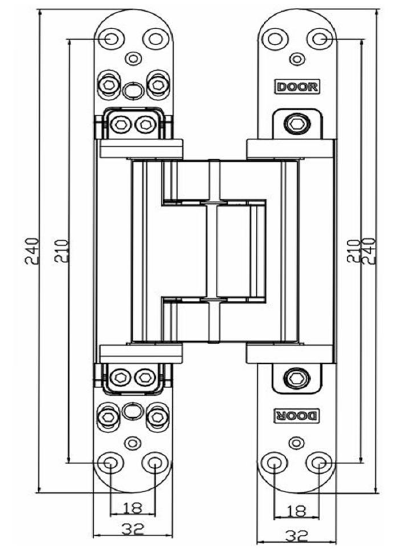

Product Data
1. Length: 240/240  Width: 32/32

2. Opening angle:≤180°
